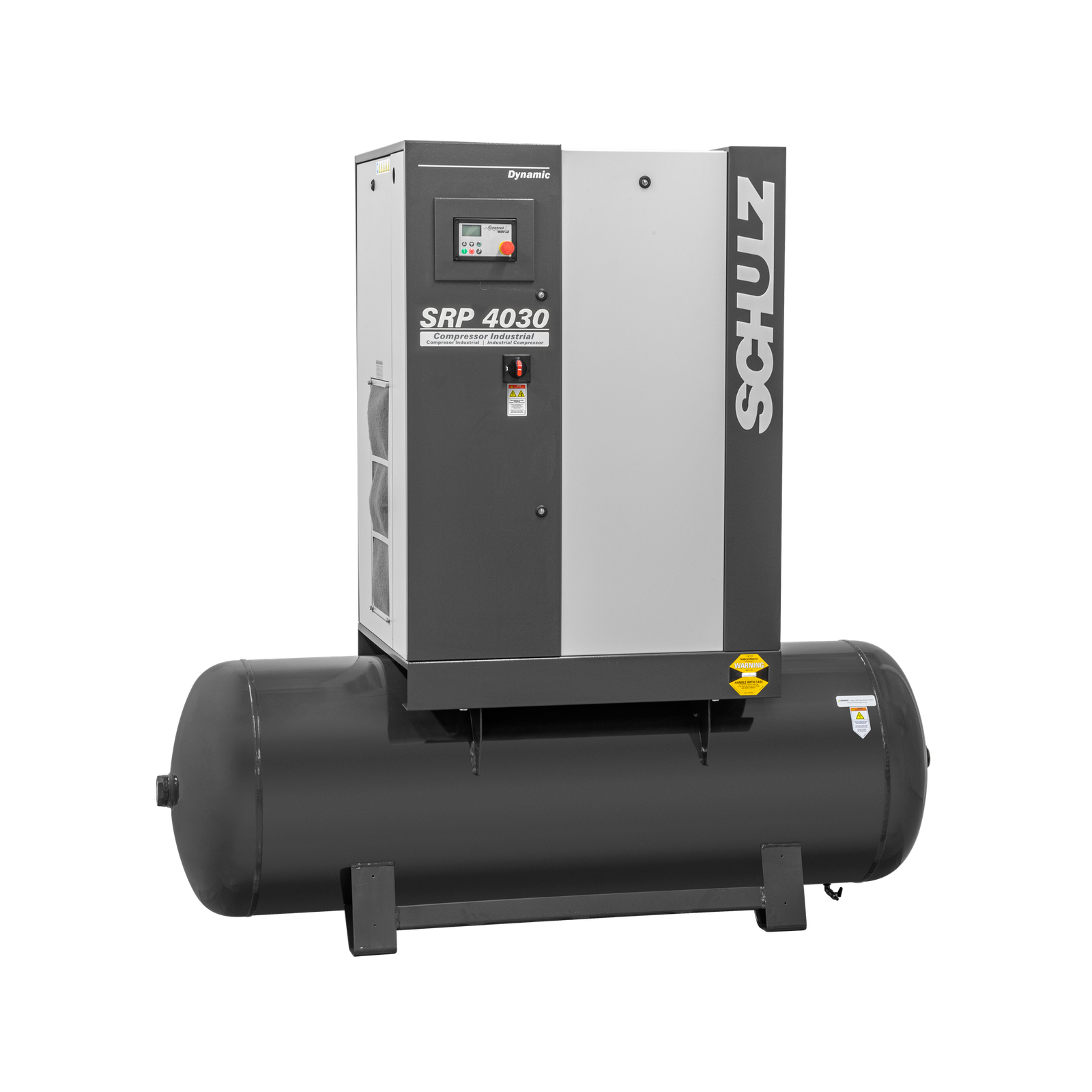

SRP 4030 DYNAMIC

120 GALLON

108 CFM

EXTREME LOW DBA

FULLY COMPUTERIZED

2 YEAR WARRANTY AIR END
1 YEAR WARRANTY EVERYTHING ELSE
5 YEAR WARRANTY AVAILABLE– CALL FOR MORE INFORMATION





PART # 970.3907-0

TEFC, IP55, degree of protection electric motors;

Automatic starters with phase and sequence failure detection;

Lubricated air-end;

Low maintenance costs;

Low oil consumption;

Coolers are on the top of the machine, improves heat recovery at customer’s facilities;

Modern design products;

High efficiency electric motors;

Thermostatic valve for working temperature control;

24V Command panel.

Operational Settings

Operation method – load/unload

Remote/local

Auto restart

Maintenance time to air filter, oil filter and air/oil separator, oil and main motor grease

Pressure and temperature units

Starts per hour

Error Messages

Main motor and fan motor overloaded

Phase fault or incorrect sequence

Emergency

High pressure

High temperature

Pressure and temperature sensor

Advantages

Low noise level

Low Speed

Foam coated steel cabinet for noise reduction

Low discharge temperature

Oversized cooling system

Longer oil and oil separator life time

Compressor prepared to handle higher ambient temperatures

Discharge temperature around 10°C above the ambient.

Low maintenance

Synthetic oil

Robust belts

Oversized separator elements – low ppm and longer life time

Oversized separator elements – low ppm and longer life

Easy access to components for quick and simple maintenance

Safety

Belt guard

24 V command panel

Fault and sequence phase relay

High temperature protection

DESCRIPTION

ADDITIONAL INFO

REVIEWS

Product Category

Air Compressor – Stationary



MOTOR

Voltage	208-230/460  Volt AC
Phase	3 Phase
dBA	70
Amp Draw	Consult Certified Electrician
Recommended Breaker	Consult Certified Electrician



ENGINE

HP

30



PUMP

CFM	117
CFM Rated @	125 PSI
Pump Material	Solid Cast Iron
Max PSI	125 PSI
Oil Sight Glass	Yes
Pump Type	Rotary
After Cooler	Yes
Pump Drive	Belt Drive
Oil Type	Oil Lubricated
Duty Cycle	100%



TANK

Tank Size	120 Gallons
Tank Included	Yes
Tank Outlet	1 Inch
Electronic Drain Valve	No
Tank Orientation	Horizontal



OVERVIEW

Weight	1187 Pounds
Certification	ASME
Consumer Warranty	1 Year
Commercial Warranty	1 Year
Product Length	58.5 Inches
Product Width	30.3 Inches
Product Height	39.8 Inches
Power Type	Electric
