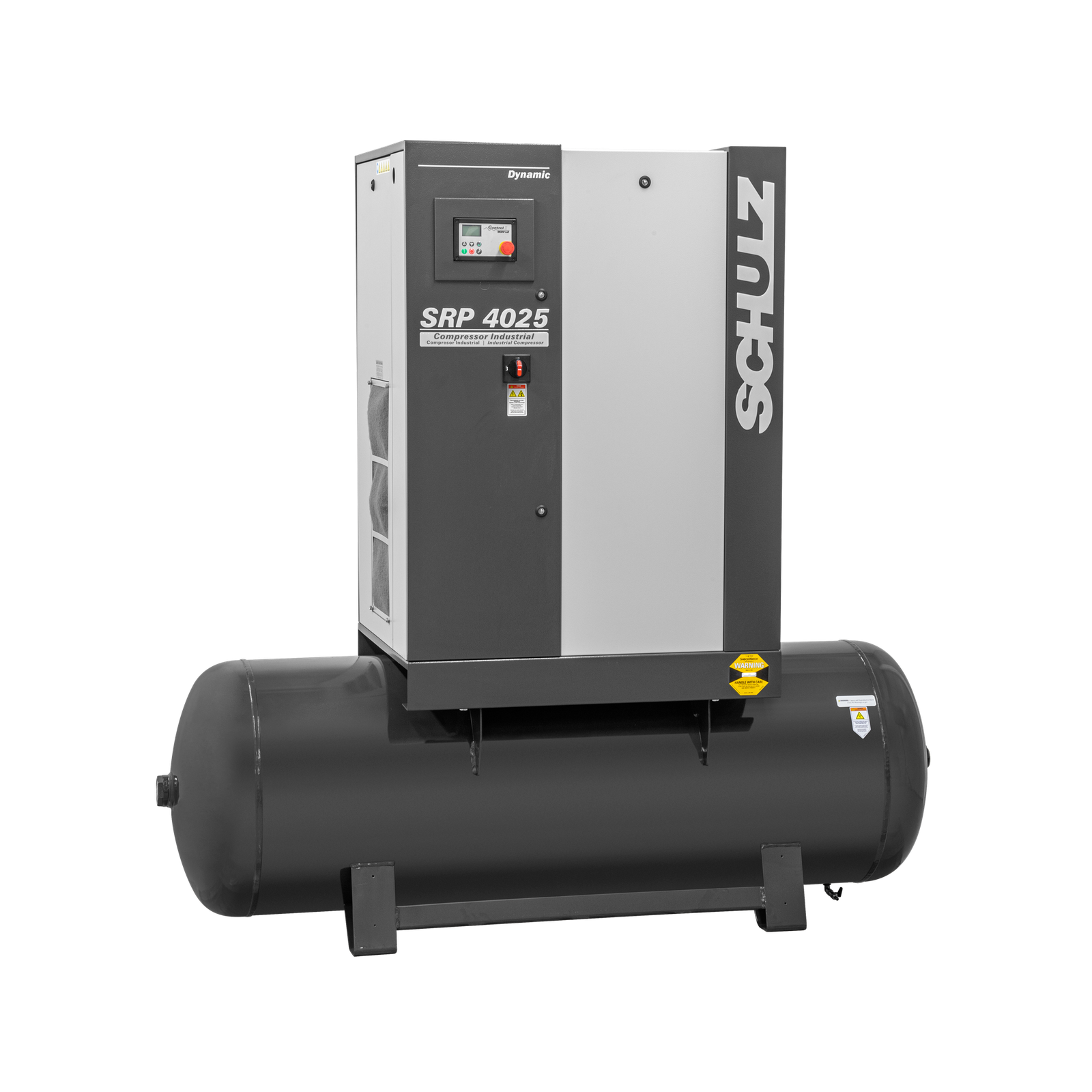

SRP 4025 DYNAMIC

89 CFM

EXTREME LOW DBA

FULLY COMPUTERIZED

2 YEAR WARRANTY AIR END
1 YEAR WARRANTY EVERYTHING ELSE
5 YEAR WARRANTY AVAILABLE– CALL FOR MORE INFORMATION

• PART # 970.3904-0
• TEFC, IP55, degree of protection electric motors;
• Automatic starters with phase and sequence failure detection;
• Lubricated air-end;
• Low maintenance costs;
• Low oil consumption;
• Coolers are on the top of the machine, improves heat recovery at customer’s facilities;
• Modern design products;
• High efficiency electric motors;
• Thermostatic valve for working temperature control;
• 24V Command panel.

Operational Settings

• Operation method – load/unload
• Remote/local
• Auto restart
• Maintenance time to air filter, oil filter and air/oil separator, oil and main motor grease
• Pressure and temperature units
• Starts per hour

Error Messages

• Main motor and fan motor overloaded
• Phase fault or incorrect sequence
• Emergency
• High pressure
• High temperature
• Pressure and temperature sensor

Advantages

Low noise level

• Low Speed
• Foam coated steel cabinet for noise reduction

Low discharge temperature

• Oversized cooling system
• Longer oil and oil separator life time
• Compressor prepared to handle higher ambient temperatures
• Discharge temperature around 10°C above the ambient.

Low maintenance

• Synthetic oil
• Robust belts
• Oversized separator elements – low ppm and longer life time
• Oversized separator elements – low ppm and longer life
• Easy access to components for quick and simple maintenance

Safety

• Belt guard
• 24 V command panel
• Fault and sequence phase relay
• High temperature protection

• Product Category

  Air Compressor – Stationary



• Voltage	230/460 Volt AC
  Phase	3 Phase
  dBA	72
  Amp Draw	Consult Certified Electrician
  Recommended Breaker	Consult Certified Electrician



• HP

  25



• CFM	89
  CFM Rated @	125 PSI
  Pump Material	Solid Cast Iron
  Max PSI	125 PSI
  Oil Sight Glass	Yes
  Pump Type	Rotary
  After Cooler	Yes
  Pump Drive	Belt Drive
  Oil Type	Oil Lubricated
  Duty Cycle	100%



• Tank Size	120 Gallons
  Tank Included	Yes
  Tank Outlet	1 Inch
  Electronic Drain Valve	No
  Tank Orientation	Horizontal



• Weight	1245 Pounds
  Certification	ASME
  Consumer Warranty	1 Year
  Commercial Warranty	1 Year
  Product Length	58.5 Inches
  Product Width	30.3 Inches
  Product Height	39.8 Inches
  Power Type	Electric
