Description
Short Description
Mid‑capacity commercial refrigerated air dryer designed to deliver reliable moisture removal for compressed air systems up to 28 CFM.
Full Description

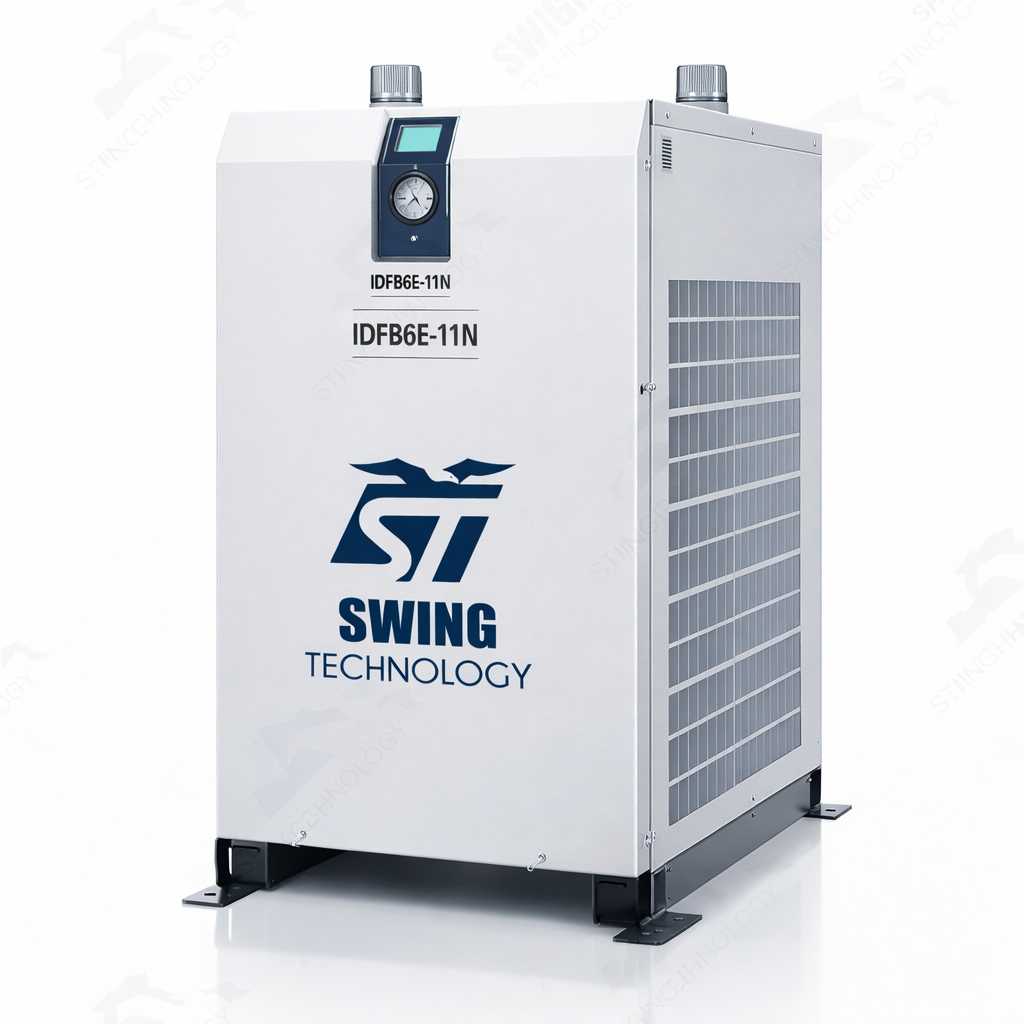

The SMC IDFB6E‑11N Commercial Refrigerated Air Dryer is engineered to protect compressed air systems by efficiently removing moisture that can lead to corrosion, pneumatic equipment failure, and costly downtime. With an airflow capacity of 25–28 CFM, this model is ideal for growing workshops and light industrial facilities that require consistent, high‑quality compressed air.
Utilizing proven refrigerated air drying technology, the IDFB6E‑11N cools incoming compressed air to condense water vapor, which is then separated and automatically discharged through a built‑in automatic drain system. Under rated operating conditions, the dryer maintains a stable outlet pressure dew point of approximately 50°F (10°C), helping prevent condensation in downstream piping and equipment.
The dryer features an air‑cooled condenser, compact cabinet design, and quiet operation for easy installation in equipment rooms and production areas. Designed for continuous indoor operation, the IDFB6E‑11N delivers dependable performance with minimal maintenance, making it a reliable solution for protecting air tools, automation systems, and process equipment.
Applications
- Medium‑size air compressors
- Pneumatic tools and air‑powered machinery
- Manufacturing and assembly lines
- Automation and control air systems
- General industrial compressed air
Key Benefits
- Reliable refrigerated air drying technology
- 25–28 CFM airflow capacity
- Approx. 50°F (10°C) pressure dew point
- Integrated automatic condensate drain
- Protects downstream equipment from moisture damage
- Compact, industrial‑grade construction
- Continuous‑duty indoor operation
Specifications (Catalog‑Verified)
- Model: IDFB6E‑11N
- Manufacturer: SMC
- Dryer Type: Refrigerated Air Dryer
- Airflow Capacity: 25–28 CFM
- Rated Inlet Air Temperature: 100°F (37.8°C)
- Outlet Pressure Dew Point: Approx. 50°F (10°C)
- Cooling Method: Air‑cooled
- Power Supply: 115V, Single Phase, 60 Hz
- Weight: 57 lbs (26 kg)
- Dimensions: Refer to SMC IDFB Series User’s Manual
User Manual / Technical Documentation
📘 SMC Refrigerated Air Dryer Catalog & User Manual (PDF)
👉 https://schulzproducts.com/wp-content/uploads/2024/03/SMC-DRYER-CATALOG.pdf
Includes installation guidelines, wiring requirements, operating conditions, dimensional references, and maintenance instructions applicable to the IDFB6E‑11N.
Warranty
✅ SMC Standard Warranty
- 1‑Year Limited Warranty
Covers defects in materials and workmanship under normal operating conditions.
