Description
Short Description
High‑capacity refrigerated air dryer designed for industrial compressed air systems requiring reliable moisture removal, high airflow, and continuous‑duty performance.
Full Description

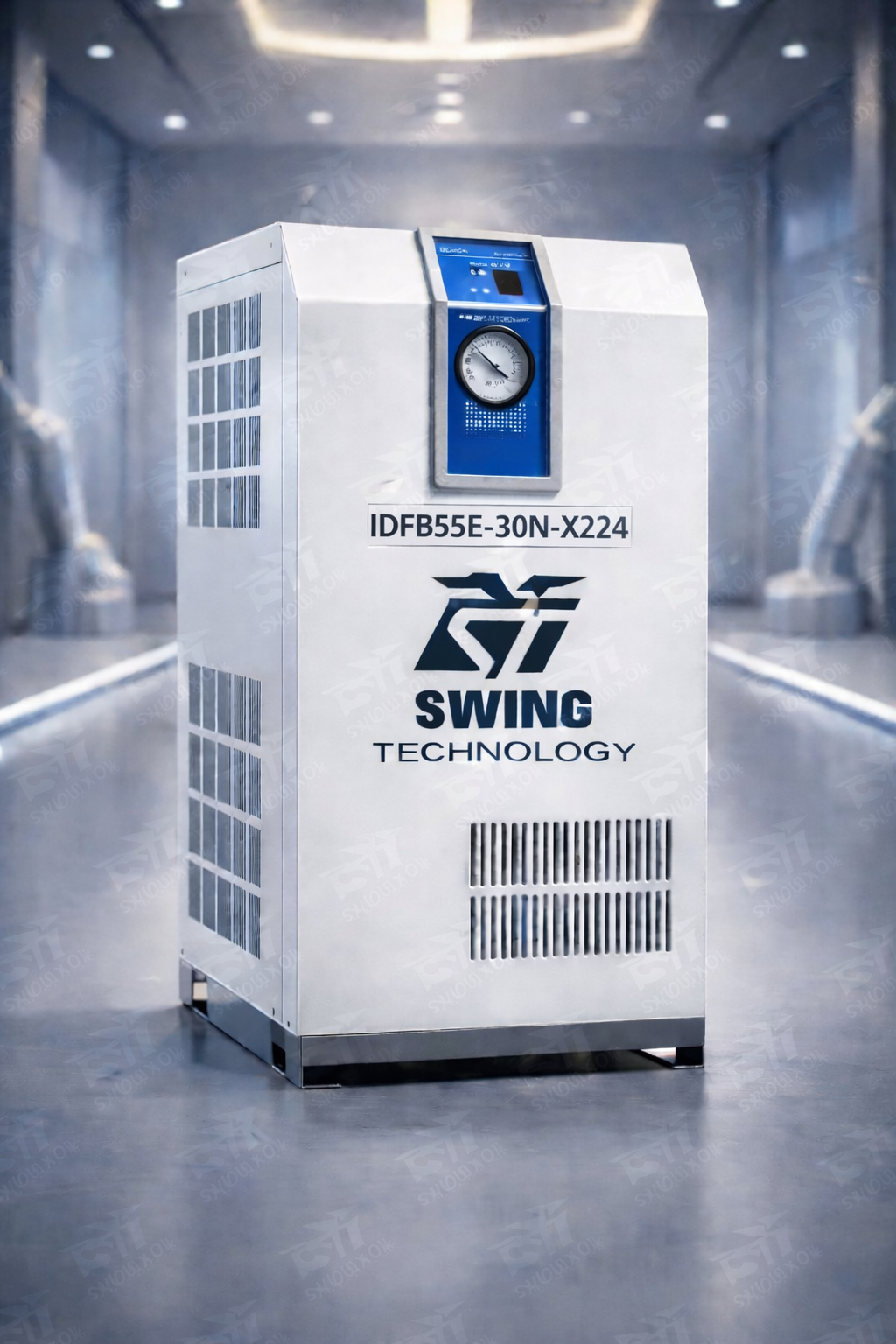

The SMC IDFB55E‑30N‑X224 Refrigerated Air Dryer is a high‑performance compressed air treatment solution engineered for industrial environments that demand large airflow capacity, dependable moisture removal, and continuous operation.
With an airflow capacity ranging from 226 to 297 CFM, this dryer is suitable for large industrial compressors and central air systems. It is commonly used in manufacturing plants, production lines, automotive facilities, and heavy‑duty pneumatic applications.
Built on SMC’s IDFB series refrigerated dryer technology, the unit removes moisture by cooling compressed air through a refrigeration circuit, condensing water vapor, and automatically discharging condensate through an integrated drain system. This process ensures a consistent supply of clean, dry compressed air.
Moisture in compressed air systems can lead to corrosion, contamination, valve malfunction, and unplanned downtime. The IDFB55E‑30N‑X224 helps reduce these risks by maintaining a stable pressure dew point and protecting downstream equipment.
Constructed with an efficient heat exchanger, corrosion‑resistant components, and an industrial‑grade design, this dryer is built for long service life and reliable performance under continuous, high‑demand operating conditions. Its capacity and durability make it a critical component in large‑scale compressed air installations.
Applications
- Large industrial manufacturing
- Production lines
- Automotive and heavy equipment facilities
- CNC and automation systems
- High‑demand pneumatic systems
- Central compressed air installations
Key Benefits
- High airflow capacity up to 297 CFM
- Removes moisture from compressed air systems
- Helps protect air lines and pneumatic equipment
- Reduces corrosion and contamination
- Improves overall system efficiency and reliability
- Automatic condensate drain system
- Designed for continuous industrial operation
- Heavy‑duty construction for long service life
Specifications
- Model: IDFB55E‑30N‑X224
- Dryer Type: Refrigerated Air Dryer
- Airflow Capacity: 226 – 297 CFM
- Maximum Operating Pressure: 150 PSI
- Pressure Dew Point: Approx. 50°F (10°C)
- Refrigerant: R134a / R407C (model dependent)
- Maximum Inlet Air Temperature: Approx. 122°F (50°C)
- Power Supply: 220V, 3‑Phase
- Cooling System: Air‑cooled heat exchanger
- Drain Type: Automatic condensate drain
Dimensions (Approximate)
- Length: ~35–40 in
- Width: ~28–32 in
- Height: ~55–65 in
Weight
- Approximate Weight: ~350 – 420 lbs
User Manual / Product Documentation
Official SMC product documentation, specifications, and operating information are available in the manufacturer’s dryer catalog:
SMC Dryer Catalog & Documentation (PDF)
https://schulzproducts.com/wp-content/uploads/2024/03/SMC-DRYER-CATALOG.pdf
Warranty
- 1 Year Standard Warranty
