Description
Short Description
High‑capacity commercial refrigerated air dryer engineered for dependable moisture removal in compressed air systems up to 86 CFM.
Full Description

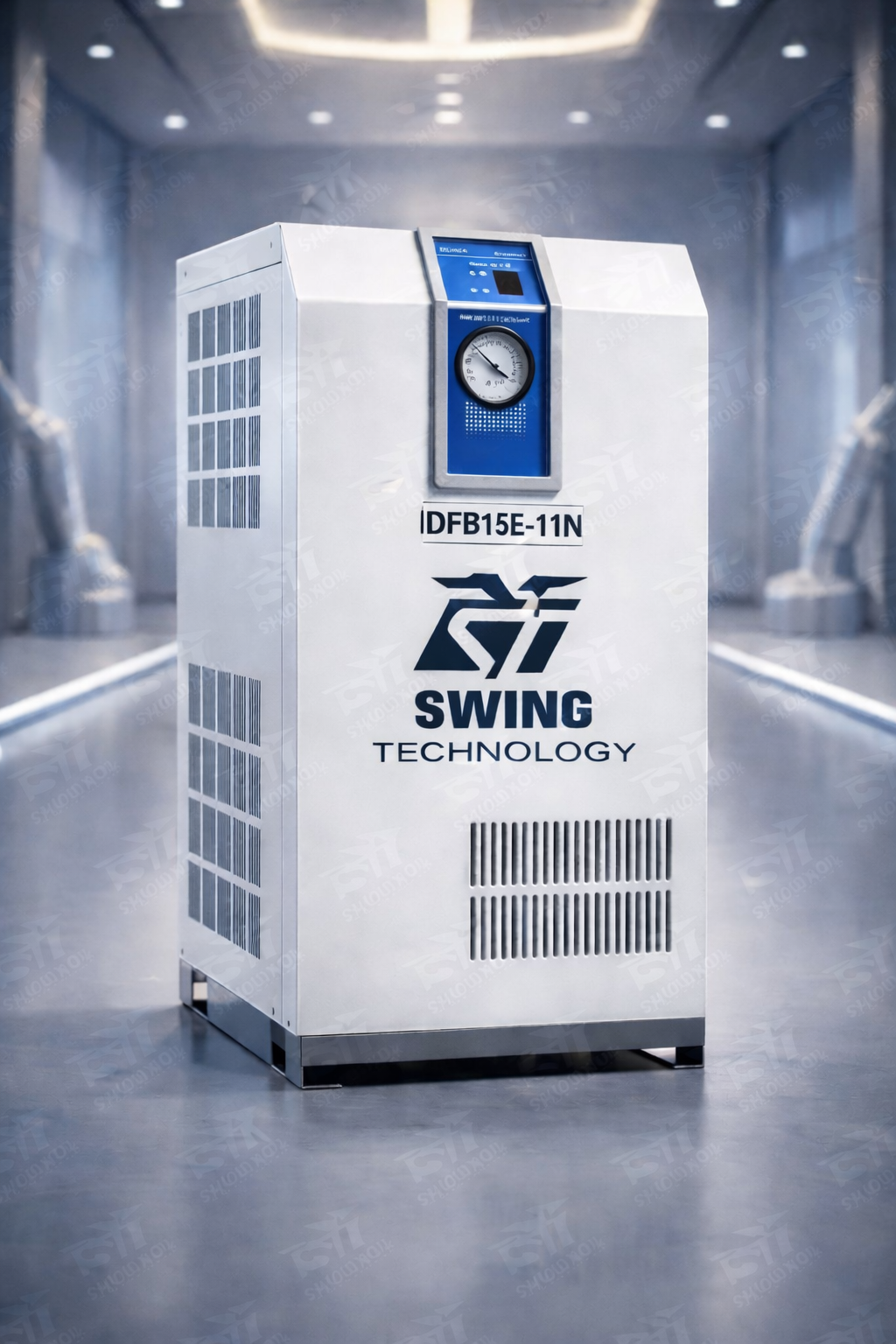

The SMC IDFB15E‑11N Commercial Refrigerated Air Dryer is designed for high‑flow compressed air applications requiring reliable and continuous moisture control. With an airflow capacity of 71–86 CFM, this model is well suited for 15–20 HP air compressors used in industrial and commercial environments where clean, dry air is critical to system performance and equipment longevity.
Employing proven refrigerated air drying technology, the IDFB15E‑11N cools incoming compressed air to condense water vapor, which is then efficiently removed through an integrated automatic condensate drain. Under rated operating conditions, the dryer maintains a stable outlet pressure dew point of approximately 50°F (10°C), reducing the risk of corrosion, water carryover, and moisture‑related downtime in downstream piping, tools, and pneumatic systems.
The unit features an air‑cooled condenser, rugged industrial cabinet, and a compact footprint that simplifies installation in compressor rooms and production facilities. Designed for continuous indoor operation, the IDFB15E‑11N delivers quiet operation, energy‑efficient performance, and low maintenance requirements, making it a dependable solution for demanding compressed air systems.
Applications
- High‑flow air compressors (15–20 HP)
- Industrial pneumatic tools and production machinery
- Manufacturing and assembly lines
- Automation and control air systems
- Centralized industrial compressed air networks
Key Benefits
- High‑capacity refrigerated air drying performance
- 71–86 CFM airflow capacity
- Approx. 50°F (10°C) pressure dew point
- Integrated automatic condensate drain
- Minimizes corrosion and moisture‑related equipment failure
- Durable, air‑cooled industrial construction
- Designed for continuous indoor operation
Specifications (Catalog‑Verified)
- Model: IDFB15E‑11N
- Manufacturer: SMC
- Dryer Type: Refrigerated Air Dryer
- Airflow Capacity: 71–86 CFM
- Rated Inlet Air Temperature: 100°F (37.8°C)
- Outlet Pressure Dew Point: Approx. 50°F (10°C)
- Cooling Method: Air‑cooled
- Power Supply: 115V, Single Phase, 60 Hz
- Operating Pressure: Up to 150 PSI
- Weight: Refer to SMC IDFB Series User’s Manual
- Dimensions: Refer to SMC IDFB Series User’s Manual
User Manual / Technical Documentation
📘 SMC Refrigerated Air Dryer Catalog & User Manual (PDF)
👉 https://schulzproducts.com/wp-content/uploads/2024/03/SMC-DRYER-CATALOG.pdf
Includes installation instructions, wiring diagrams, dimensional drawings, operating conditions, and maintenance procedures applicable to the IDFB15E‑11N.
Warranty
✅ SMC Standard Warranty
- 1‑Year Limited Warranty
Covers defects in materials and workmanship under normal operating conditions.
