$10,999.00

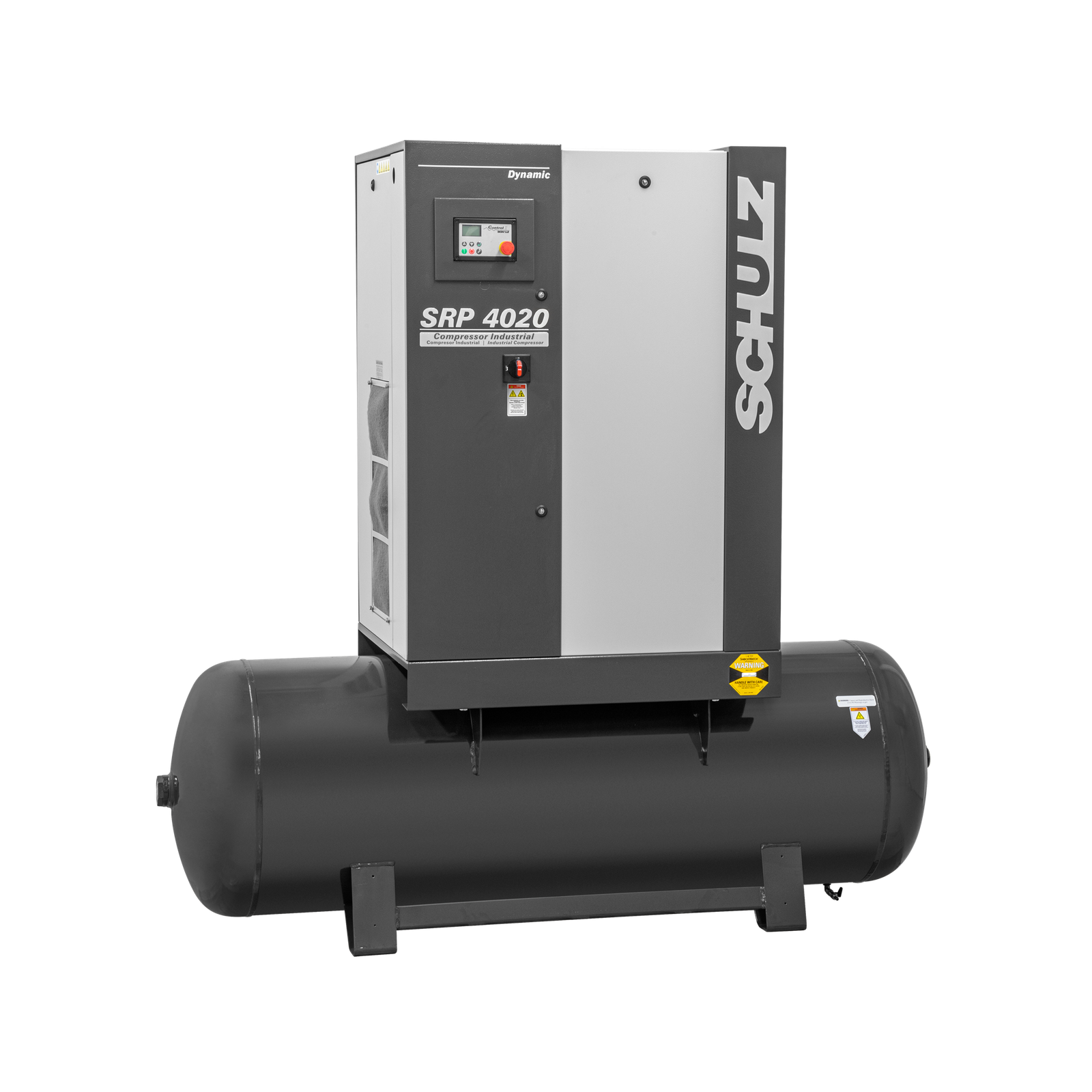

SRP 4020 DYNAMIC
120 gallon tank
74 CFM
EXTREME LOW DBA
FULLY COMPUTERIZED
2 YEAR WARRANTY AIR END
1 YEAR WARRANTY EVERYTHING ELSE
5 YEAR WARRANTY AVAILABLE– CALL FOR MORE INFORMATION
PART # 970.3903-0
TEFC, IP55, degree of protection electric motors;
Automatic starters with phase and sequence failure detection;
Lubricated air-end;
Low maintenance costs;
Low oil consumption;
Coolers are on the top of the machine, improves heat recovery at customer’s facilities;
Modern design products;
High efficiency electric motors;
Thermostatic valve for working temperature control;
24V Command panel.
Operational Settings
Operation method – load/unload
Remote/local
Auto restart
Maintenance time to air filter, oil filter and air/oil separator, oil and main motor grease
Pressure and temperature units
Starts per hour
Error Messages
Main motor and fan motor overloaded
Phase fault or incorrect sequence
Emergency
High pressure
High temperature
Pressure and temperature sensor
Advantages
Low noise level
Low Speed
Foam coated steel cabinet for noise reduction
Low discharge temperature
Oversized cooling system
Longer oil and oil separator life time
Compressor prepared to handle higher ambient temperatures
Discharge temperature around 10°C above the ambient.
Low maintenance
Synthetic oil
Robust belts
Oversized separator elements – low ppm and longer life time
Oversized separator elements – low ppm and longer life
Easy access to components for quick and simple maintenance
Safety
Belt guard
24 V command panel
Fault and sequence phase relay
High temperature protection
Product Category | Air Compressor – Stationary |
MOTOR
Voltage | 230/460 Volt AC |
Phase | 3 Phase |
dBA | 68 |
Amp Draw | Consult Certified Electrician |
Recommended Breaker | Consult Certified Electrician |
ENGINE
HP | 20 |
PUMP
CFM | 74 |
CFM Rated @ | 125 PSI |
Pump Material | Solid Cast Iron |
Max PSI | 125 PSI |
Oil Sight Glass | Yes |
Pump Type | Rotary |
After Cooler | Yes |
Pump Drive | Belt Drive |
Oil Type | Oil Lubricated |
Duty Cycle | 100% |
TANK
Tank Size | 120 Gallons |
Tank Included | Yes |
Tank Outlet | 1 Inch |
Electronic Drain Valve | No |
Tank Orientation | Horizontal |
OVERVIEW
Weight | 1146 Pounds |
Certification | ASME |
Consumer Warranty | 1 Year |
Commercial Warranty | 1 Year |
Product Length | 82 Inches |
Product Width | 30.3 Inches |
Product Height | 68 Inches |
Power Type | Electric |
