SCHULZ REFRIGERATED AIR COMPRESSOR DRYER – 100CFM- ADS100-UP

SCHULZ REFRIGERATED AIR COMPRESSOR DRYER – 100CFM- ADS100-UP

$1,599.00 $1,499.00

Schulz ADS 100 Non-Cycling Refrigerated Air Dryer (100 CFM 115V 1-Phase)

Excellent Performance

  • Even where ambient & inlet temperatures are elevated
  • Nominal air pressure of 100 PSI; 203 PSI maximum

Energy Efficient Sizing

  • Matches the compressor's displacement, saving energy

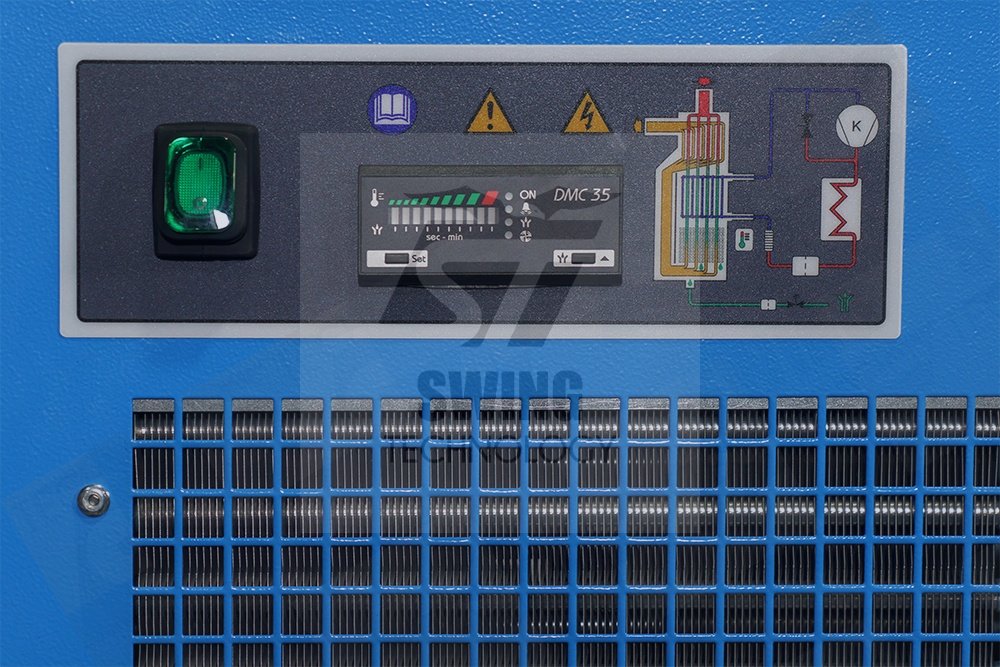

Electronic Controller

  • Digitally shows temperature & dew point
  • Controls the drain valve through a timer

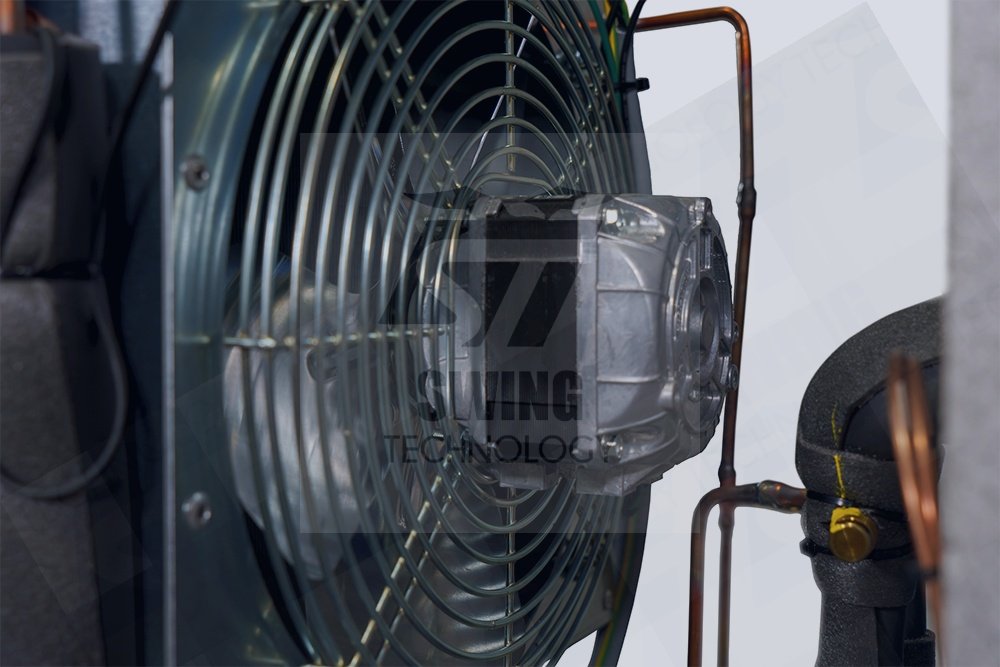

  • Controls the condenser fan through a probe

High-Efficiency Compressor

  • Circulates the refrigerant through the system

Totally New Design

  • Delivers high dependability & low power consumption
  • Quick disconnect automatic drain valve doesn't need special tools
  • Requires a 115V, single phase circuit

Environmentally Friendly Refrigerant

  • R407c is effective & easier on the environment

Compact Footprint

  • Conveniently sized 29.1 x 13.9 x 15.3
  • Weighs only 88 pounds; easy to install
  • 1 1/4 inches inlet and outlet

Schulz ADS 100 Non-Cycling Refrigerated Air Dryer (100 CFM 115V 1-Phase)

Excellent Performance

  • Even where ambient & inlet temperatures are elevated
  • Nominal air pressure of 100 PSI; 203 PSI maximum

Energy Efficient Sizing

  • Matches the compressor’s displacement, saving energy

Electronic Controller

  • Digitally shows temperature & dew point
  • Controls the drain valve through a timer
  • Controls the condenser fan through a probe

High-Efficiency Compressor

  • Circulates the refrigerant through the system

Totally New Design

  • Delivers high dependability & low power consumption
  • Quick disconnect automatic drain valve doesn’t need special tools
  • Requires a 115V, single phase circuit

Environmentally Friendly Refrigerant

  • R407c is effective & easier on the environment
Technical Features
Model ADS 100
Flow (CFM) 100
Rated Pressure (PSI) 175
Maximum Pressure (PSI) 203
Connection (in) 1-1/4″ NPT-F
Voltage (V) 115
Refrigerant Fluid R134a
Frequency (Hz) 60
Phase Single
Nominal Voltage (A) 8
Dimensions (HxWxL in) 30 x 14 x 17
