SCHULZ REFRIGERATED AIR DRYER – 15CFM – ADS15-UP

SCHULZ REFRIGERATED AIR DRYER – 15CFM – ADS15-UP

$1,065.00

Categories: ,
Share:
Description
Additional Info
Reviews
Description

Schulz ADS 15 Non-Cycling Refrigerated Compressed Air Dryer (15 CFM 115V 1-Phase)

Excellent Performance

  • Even where ambient & inlet temperatures are elevated
  • Nominal air pressure of 100 PSI; 232 PSI maximum

Energy Efficient Sizing

  • Matches the compressor's displacement, saving energy

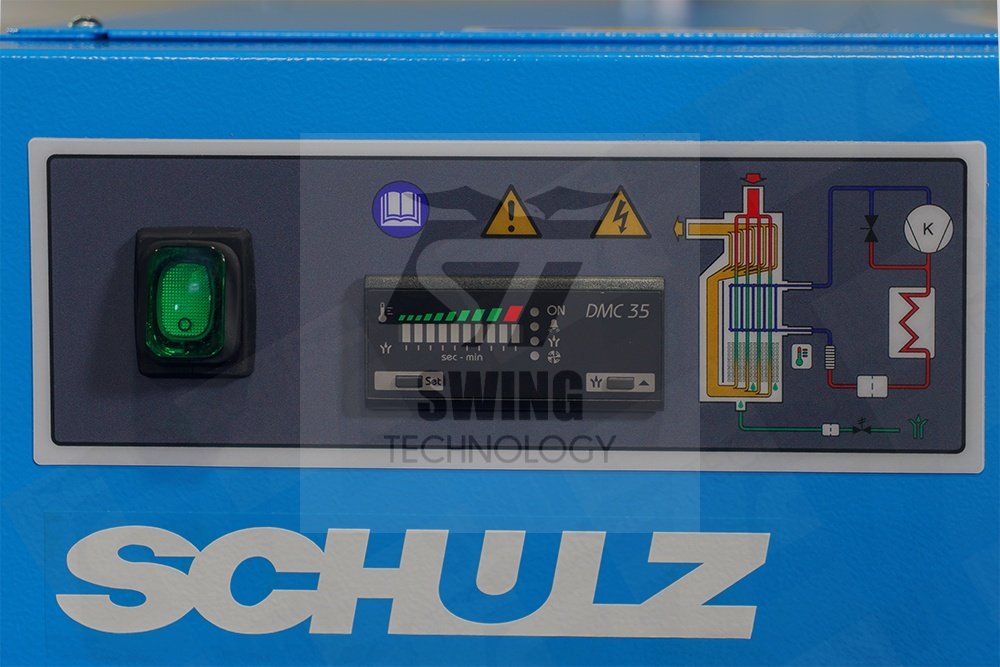

Electronic Controller

  • Digitally shows temperature & dew point
  • Controls the drain valve through a timer

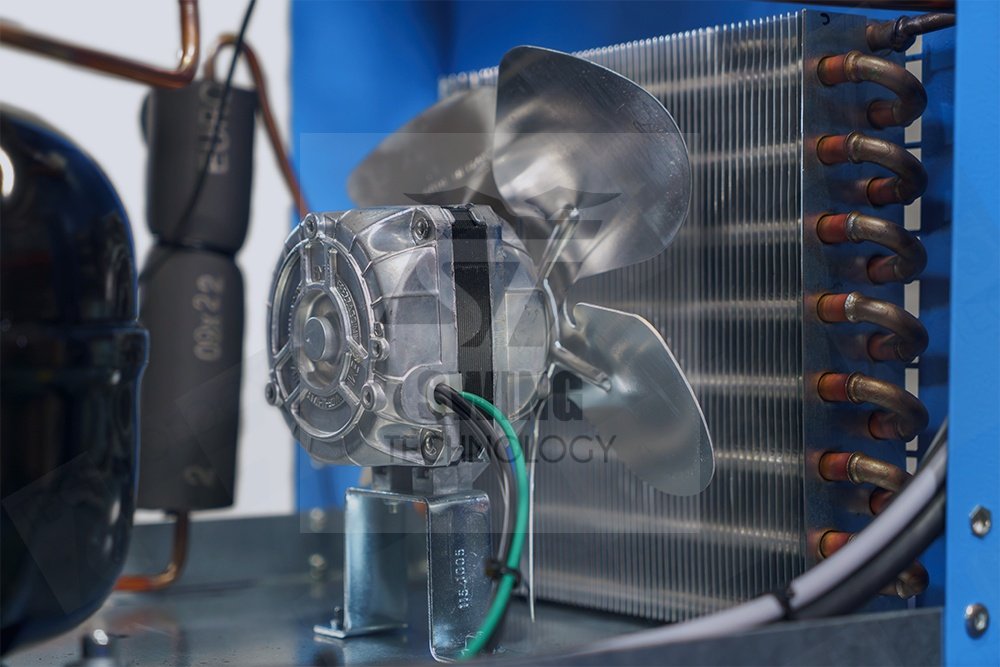

  • Controls the condenser fan through a probe

High-Efficiency Compressor

  • Circulates the refrigerant through the system

Totally New Design

  • Delivers high dependability & low power consumption
  • Quick disconnect automatic drain valve doesn't need special tools
  • Requires a 115V, single phase circuit

Environmentally Friendly Refrigerant

  • R134a is effective & easier on the environment

Compact Footprint

  • Conveniently sized 17.1 X 12.3 X 12
  • Weighs only 48 pounds; easy to install

 3/8 INCH INLET AND OUTLET

Additional Info
Reviews

Schulz ADS 15 Non-Cycling Refrigerated Compressed Air Dryer (15 CFM 115V 1-Phase)

Excellent Performance

  • Even where ambient & inlet temperatures are elevated
  • Nominal air pressure of 100 PSI; 232 PSI maximum

Energy Efficient Sizing

  • Matches the compressor’s displacement, saving energy

Electronic Controller

  • Digitally shows temperature & dew point
  • Controls the drain valve through a timer
  • Controls the condenser fan through a probe

High-Efficiency Compressor

  • Circulates the refrigerant through the system

Totally New Design

  • Delivers high dependability & low power consumption
  • Quick disconnect automatic drain valve doesn’t need special tools
  • Requires a 115V, single phase circuit

Environmentally Friendly Refrigerant

  • R134a is effective & easier on the environment

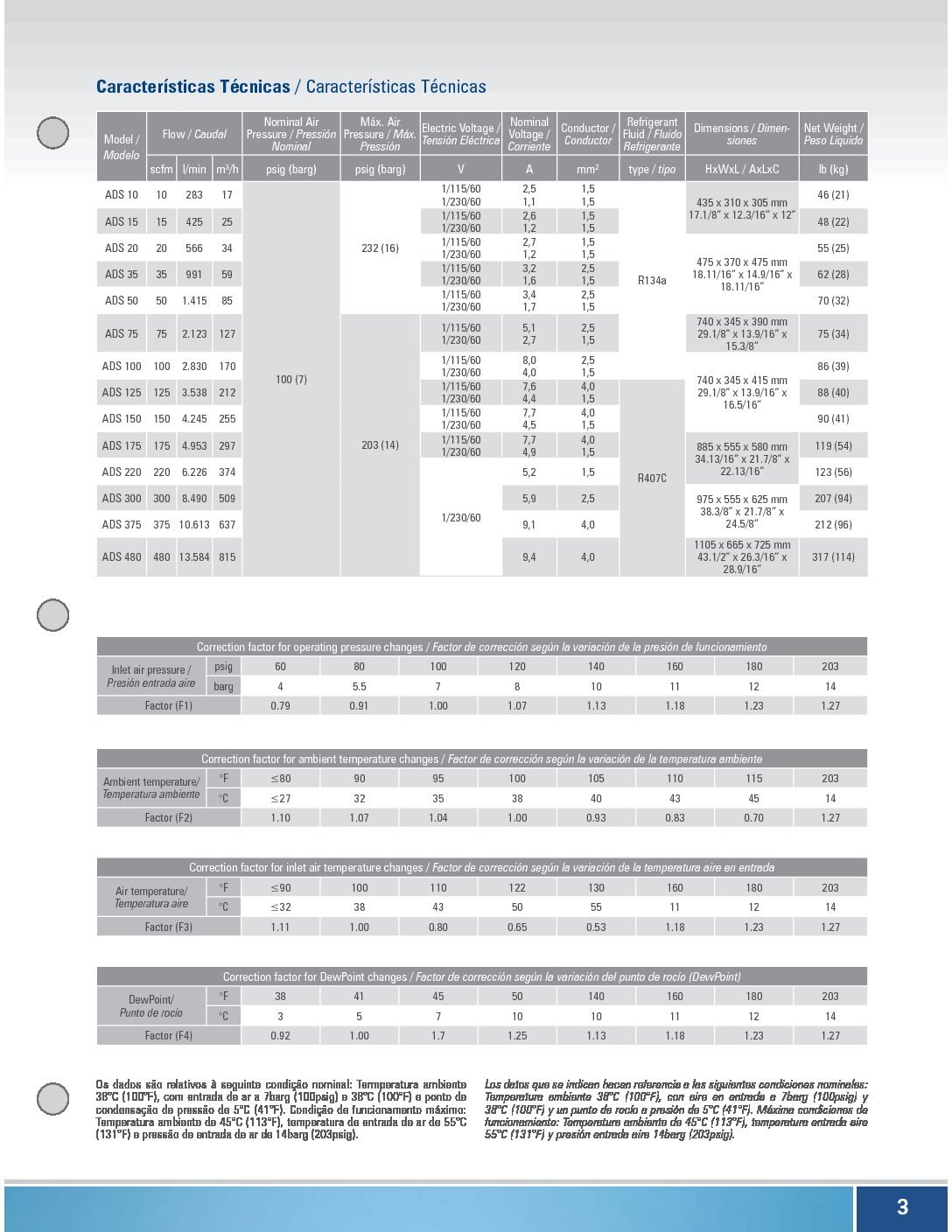

Technical Features
Model ADS 15
Flow (CFM) 15
Rated Pressure (PSI) 175
Maximum Pressure (PSI) 232
Connection (in) 3/8″ NPT-F
Voltage (V) 115
Refrigerant Fluid R134a
Frequency (Hz) 60
Phase Single
Nominal Voltage (A) 2.6
Dimensions (HxWxL in) 18 x 13 x 12
