SCHULZ REFRIGERATED-AIR-COMPRESSOR-DRYER-150CFM-ADS150-UP

SCHULZ REFRIGERATED-AIR-COMPRESSOR-DRYER-150CFM-ADS150-UP

$2,450.00$2,560.00

SKU: N/A.
Categories: ,
Share:
Description
Additional Info
Reviews
Description

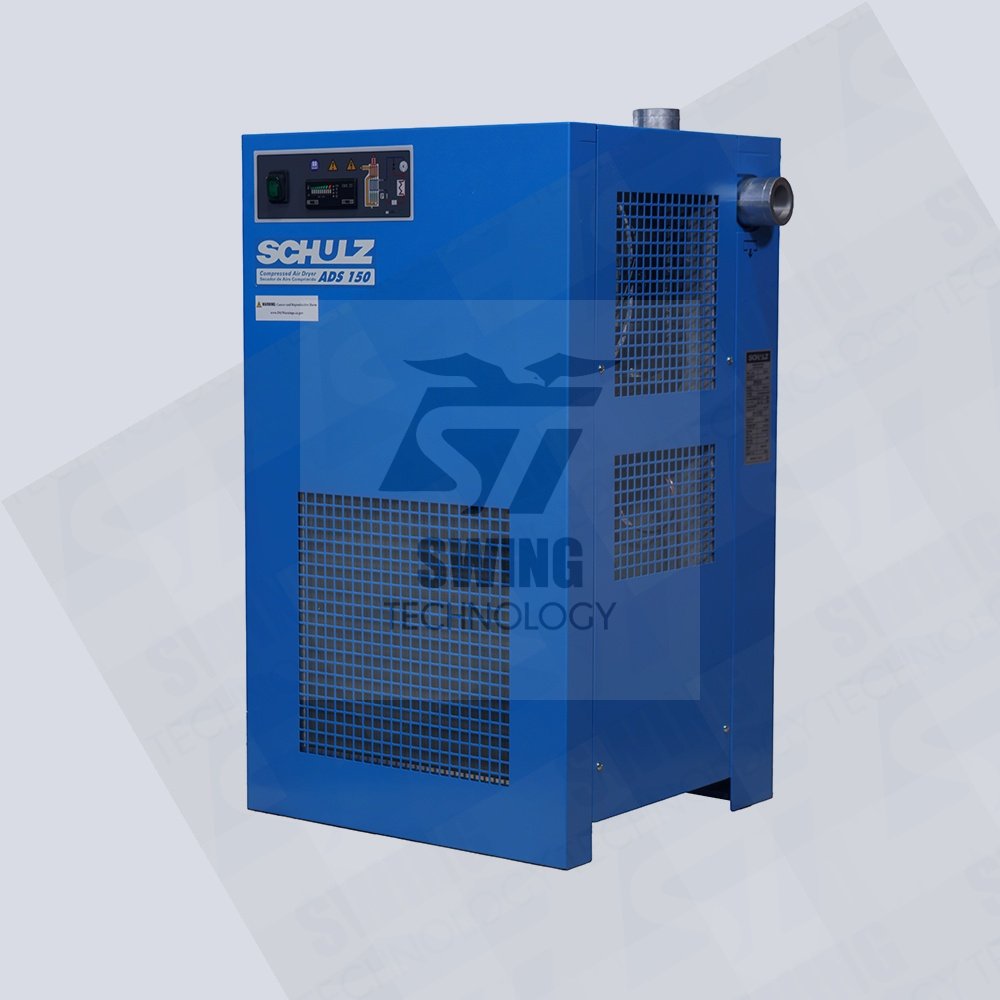

Schulz ADS 150 Non-Cycling Refrigerated Air Dryer (150 CFM 115V 1-Phase)

Excellent Performance

  • Even where ambient & inlet temperatures are elevated
  • Nominal air pressure of 100 PSI; 203 PSI maximum

Energy Efficient Sizing

  • Matches the compressor's displacement, saving energy

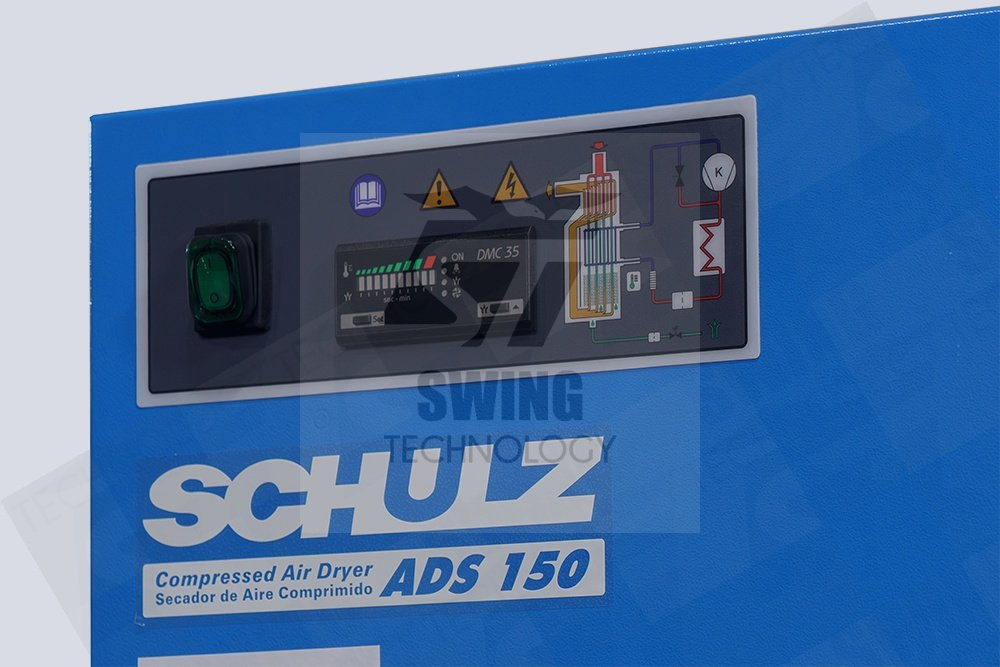

Electronic Controller

  • Digitally shows temperature & dew point
  • Controls the drain valve through a timer

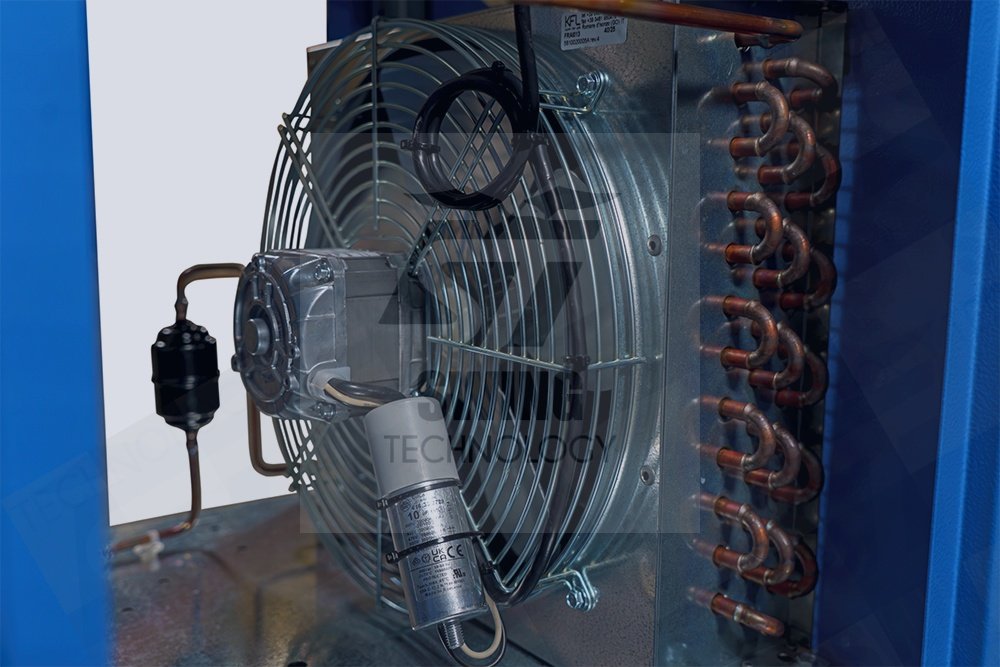

  • Controls the condenser fan through a probe

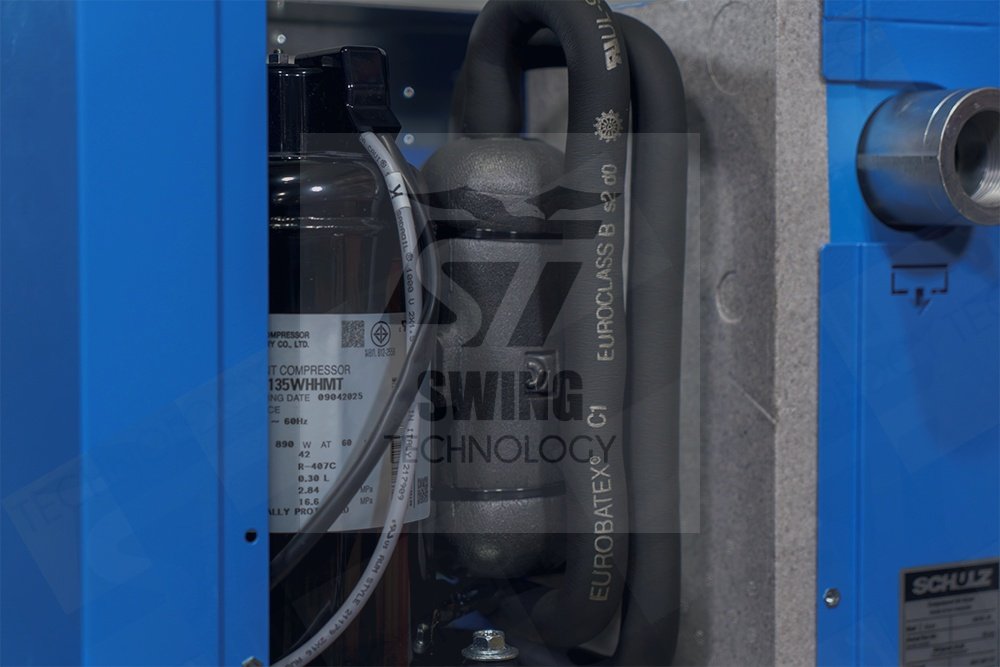

High-Efficiency Compressor

  • Circulates the refrigerant through the system

Totally New Design

  • Delivers high dependability & low power consumption
  • Quick disconnect automatic drain valve doesn't need special tools
  • Requires a 115V, single phase circuit

Environmentally Friendly Refrigerant

  • R407c is effective & easier on the environment

Compact Footprint

  • Conveniently sized 29.1 x 13.9 x 15.3
  • Weighs only 90 pounds; easy to install
  •  1 1/2 INCHES INLET AND OUTLET
Reviews

Schulz ADS 150 Non-Cycling Refrigerated Air Dryer (150 CFM 115V 1-Phase)

Excellent Performance

  • Even where ambient & inlet temperatures are elevated
  • Nominal air pressure of 100 PSI; 203 PSI maximum

Energy Efficient Sizing

  • Matches the compressor’s displacement, saving energy

Electronic Controller

  • Digitally shows temperature & dew point
  • Controls the drain valve through a timer
  • Controls the condenser fan through a probe

High-Efficiency Compressor

  • Circulates the refrigerant through the system

Totally New Design

  • Delivers high dependability & low power consumption
  • Quick disconnect automatic drain valve doesn’t need special tools
  • Requires a 115V, single phase circuit

Environmentally Friendly Refrigerant

  • R407c is effective & easier on the environment
Technical Features
Model ADS 150
Flow (CFM) 150
Rated Pressure (PSI) 175
Maximum Pressure (PSI) 203
Connection (in) 1-1/2″ NPT-F
Voltage (V) 115
Refrigerant Fluid R407C
Frequency (Hz) 60
Phase Single
Nominal Voltage (A) 7.7
Dimensions (HxWxL in) 30 x 14 x 17
