Description
Short Description
High‑capacity commercial refrigerated air dryer designed for dependable moisture removal in compressed air systems up to 65 CFM.
Full Description

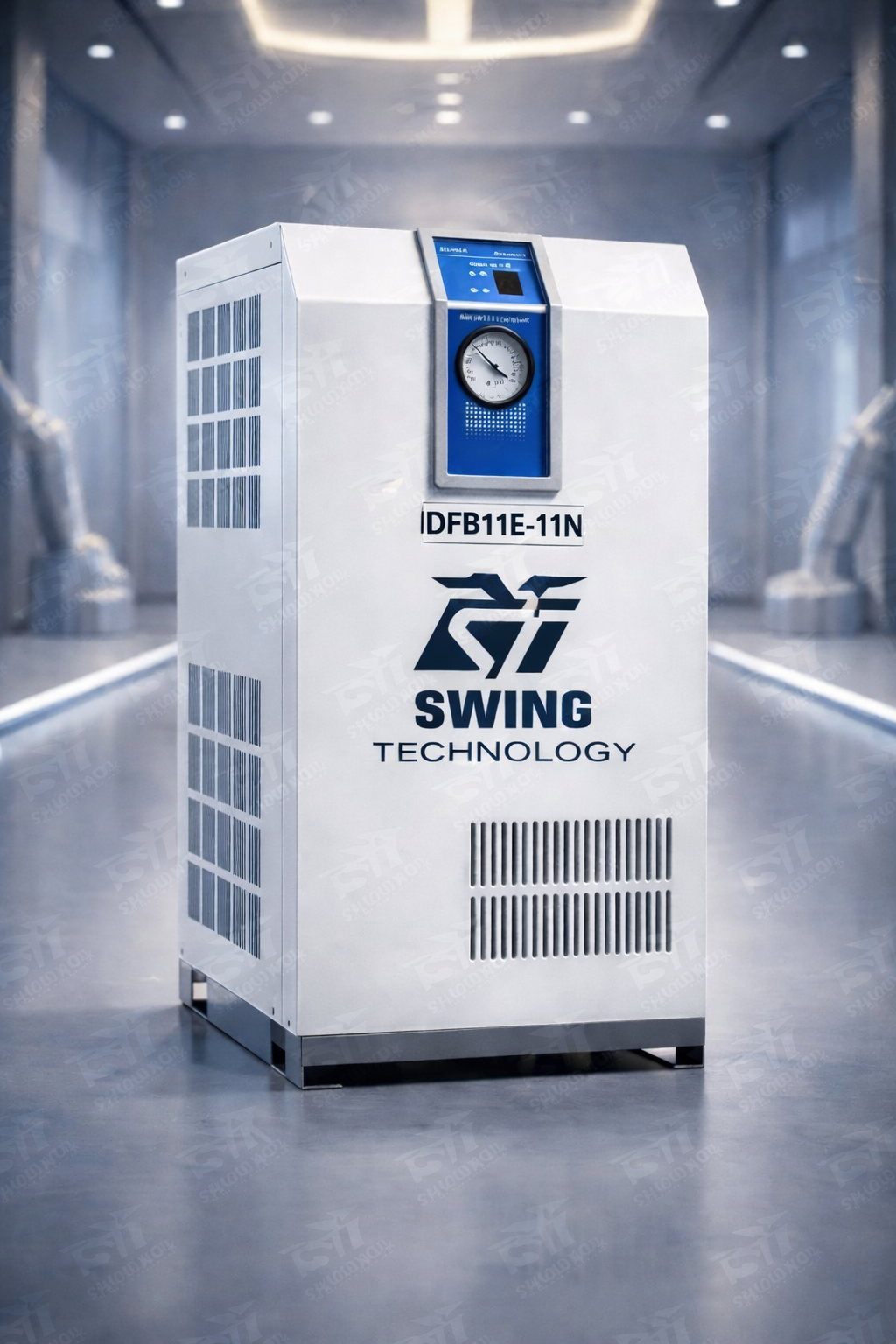

The SMC IDFB11E‑11N Commercial Refrigerated Air Dryer is designed to provide consistent and efficient moisture removal for high‑demand compressed air systems. With an airflow capacity of 59–65 CFM, this model is ideally suited for 10–15 HP air compressors used in industrial and commercial environments where dry, clean compressed air is essential for equipment protection and process reliability.
Using advanced refrigerated air drying technology, the IDFB11E‑11N cools incoming compressed air to condense water vapor, which is then separated and automatically discharged through an integrated automatic drain system. Under rated operating conditions, the dryer maintains a stable outlet pressure dew point of approximately 50°F (10°C), helping to prevent condensation, corrosion, and moisture‑related damage throughout downstream piping and pneumatic equipment.
The unit features an air‑cooled condenser, rugged industrial enclosure, and a space‑efficient design that allows for straightforward installation in compressor rooms and production facilities. Engineered for continuous indoor operation, the IDFB11E‑11N delivers quiet performance, energy‑efficient operation, and low maintenance requirements, making it a reliable solution for demanding compressed air applications.
Applications
- High‑capacity air compressors (10–15 HP)
- Industrial pneumatic tools and machinery
- Manufacturing and assembly operations
- Automation and instrumentation air systems
- General industrial compressed air networks
Key Benefits
- High‑capacity refrigerated air drying performance
- 59–65 CFM airflow capacity
- Approx. 50°F (10°C) pressure dew point
- Integrated automatic condensate drain
- Reduces corrosion and moisture‑related failures
- Durable, air‑cooled industrial construction
- Designed for continuous indoor operation
Specifications (Catalog‑Verified)
- Model: IDFB11E‑11N
- Manufacturer: SMC
- Dryer Type: Refrigerated Air Dryer
- Airflow Capacity: 59–65 CFM
- Rated Inlet Air Temperature: 100°F (37.8°C)
- Outlet Pressure Dew Point: Approx. 50°F (10°C)
- Cooling Method: Air‑cooled
- Power Supply: 115V, Single Phase, 60 Hz
- Operating Pressure: Up to 150 PSI
- Weight: Refer to SMC IDFB Series User’s Manual
- Dimensions: Refer to SMC IDFB Series User’s Manual
User Manual / Technical Documentation
📘 SMC Refrigerated Air Dryer Catalog & User Manual (PDF)
👉 https://schulzproducts.com/wp-content/uploads/2024/03/SMC-DRYER-CATALOG.pdf
Includes installation instructions, wiring diagrams, dimensional drawings, operating conditions, and maintenance procedures applicable to the IDFB11E‑11N.
Warranty
✅ SMC Standard Warranty
- 1‑Year Limited Warranty
Covers defects in materials and workmanship under normal operating conditions.
