Schulz rotary screw srp 3008 compact- 7.5 hp-27 cfm 1ph or 3 phase

Categories Fixed Speed, Screw Compressors

$5,997.22

99 in stock

Do you have any doubts?

Unmatched Efficiency and Continuous Power

Available now at schulzproducts.com, the Schulz Rotary Screw Air Compressor is built for continuous, high-demand applications that require reliability and efficiency. Ideal for heavy-duty environments, this compressor operates with advanced rotary screw technology, providing smooth, quiet, and energy-efficient performance. Its robust construction ensures long-lasting durability, while its precision design minimizes maintenance and maximizes uptime. Choose Schulz for a compressor that handles the toughest jobs with ease and delivers consistent, powerful air flow. Experience superior performance and efficiency at schulzproducts.com!

Details

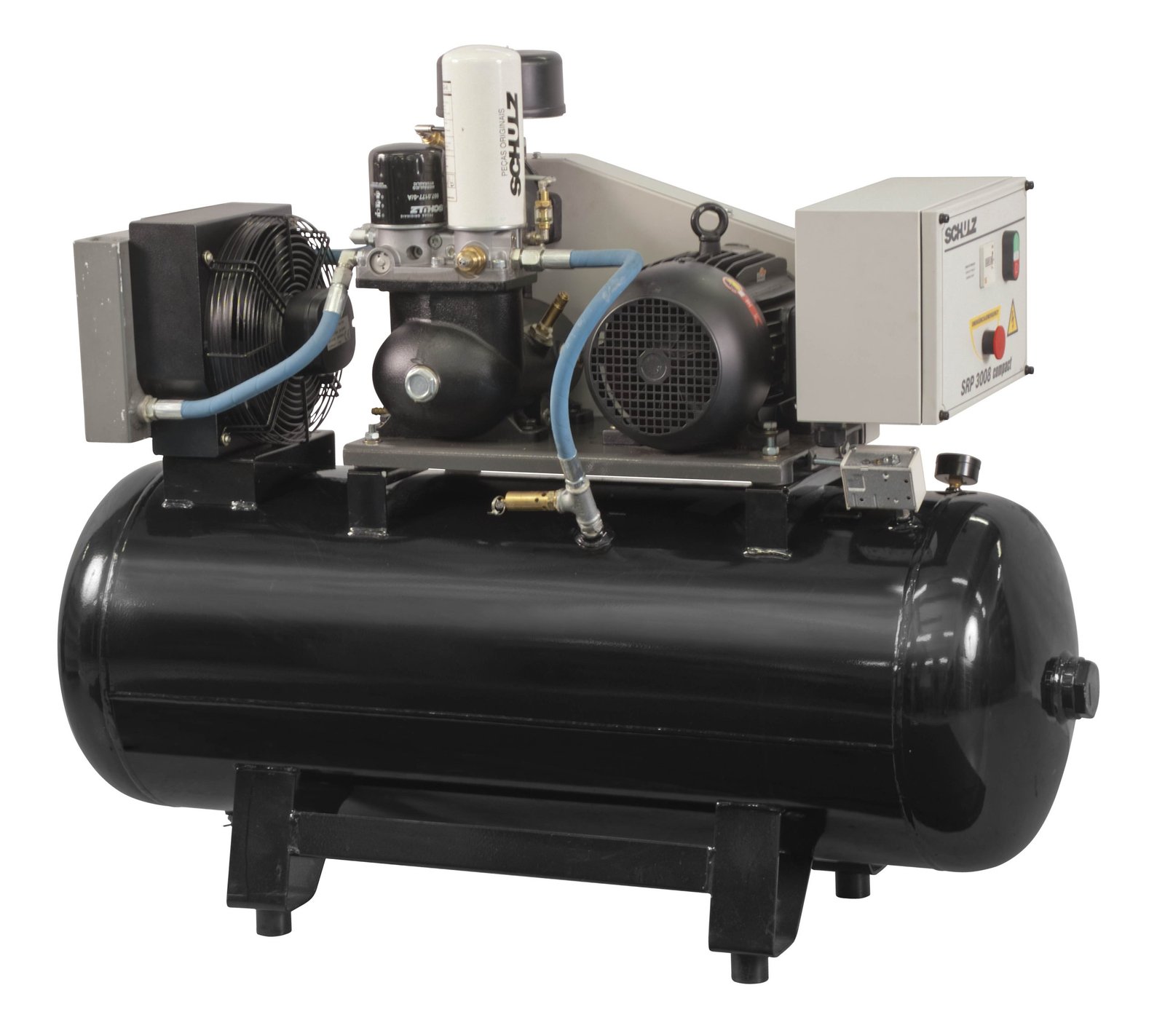

SCHULZ 7.5 HP ROTARY SCREW OPE CABINET 27 CFM

7.5 HP ROTARY SCREW WITH 60 GALLON TANK,

2 YEAR WARRANTY AIR END
1 YEAR WARRANTY EVERYTHING ELSE
5 YEAR WARRANTY AVAILABLE– CALL FOR MORE INFORMATION

PART # 970.3890-0 SINGLE PHASE

PART # 970-3891-0 THREE PHASE

TEFC, IP55, degree of protection electric motors;

Automatic starters with phase and sequence failure detection;

Lubricated air-end;

Low maintenance costs;

Low oil consumption;

Coolers are on the top of the machine, improves heat recovery at customer’s facilities;

Modern design products;

High efficiency electric motors;

Thermostatic valve for working temperature control;

24V Command panel.

60 gallon tank

Product Category

Air Compressor – Stationary

MOTOR

Voltage	230 Volt AC
Phase	1 Phase
dBA	83

ENGINE

7.5

PUMP

CFM	25
CFM Rated @	125 PSI
Max PSI	125 PSI
Oil Sight Glass	Yes
Pump Type	Rotary
After Cooler	No
Pump Drive	Belt Drive
Oil Type	Oil Lubricated
Duty Cycle	100%
Pump Low Oil Shut-off	No

TANK

Tank Size	60 Gallons
Tank Included	Yes
Tank Outlet	1/2 Inch
Electronic Drain Valve	No
Tank Orientation	Horizontal

ACCESSORIES

Air Filter

Yes

OVERVIEW

Weight	373 Pounds
Consumer Warranty	1 Year
Commercial Warranty	1 Year
Product Length	35 Inches
Product Width	18 Inches
Product Height	42 Inches
Power Type	Electric
