Schulz refrigerated air dryer – 10cfm – ads10-up
$1,047.00
Do you have any doubts?
Do you have any doubts?
Powerful, Reliable, and Built for Optimal Performance
The Schulz Air Dryer, available at schulzproducts.com, is engineered to deliver high-quality compressed air, ensuring your systems operate efficiently and with reduced maintenance needs. This air dryer effectively reduces moisture content to prevent corrosion, extend equipment lifespan, and lower operating costs. With its durable construction and energy efficiency, it’s designed for demanding industrial environments, delivering consistently dry air to protect your valuable machinery. Choose Schulz for a solution that maximizes productivity and keeps your air systems running smoothly. Find yours today at schulzproducts.com!
Details
Schulz ADS 10 Non-Cycling Refrigerated Compressed Air Dryer (10 CFM 115V 1-Phase)
1 YEAR WARRANTY.
Excellent Performance
- Even where ambient & inlet temperatures are elevated
- Nominal air pressure of 100 PSI; 232 PSI maximum
Energy Efficient Sizing
- Matches the compressor’s displacement, saving energy
Electronic Controller
- Digitally shows temperature & dew point
- Controls the drain valve through a timer
- Controls the condenser fan through a probe
High-Efficiency Compressor
- Circulates the refrigerant through the system
Totally New Design
- Delivers high dependability & low power consumption
- Quick disconnect automatic drain valve doesn’t need special tools
- Requires a 115V, single phase circuit
Environmentally Friendly Refrigerant
- R134a is effective & easier on the environment
AIR DRYER
| Dryer Voltage | 115V 1-Phase |
| Air Dryer CFM | 10 |
| Max PSI | 232 |
| Max Inlet Temp. Rating | 100 |
| Max Ambient Temp. Rating | 113 |
| Non-Cycling | Yes |
| Inlet Fittings | 3/8 Inch |
| Outlet Fittings | 3/8 Inch |
| Aftercooler | No |
| Pre-Filter | No |
| Post-Filter | No |
| Wall Mountable | No |
| Alarm Lights | Yes |
| Auto Drain | Yes |
| Regenerative | No |
| High Temp | No |
| Dry Amp Draw | 15.44 |
OVERVIEW
| Weight | 46 Pounds |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 12 Inches |
| Product Width | 13 Inches |
| Product Height | 18 Inches |
| Power Type | Electric |
| Additional Model Numbers | ADS-10, ADS 10 |

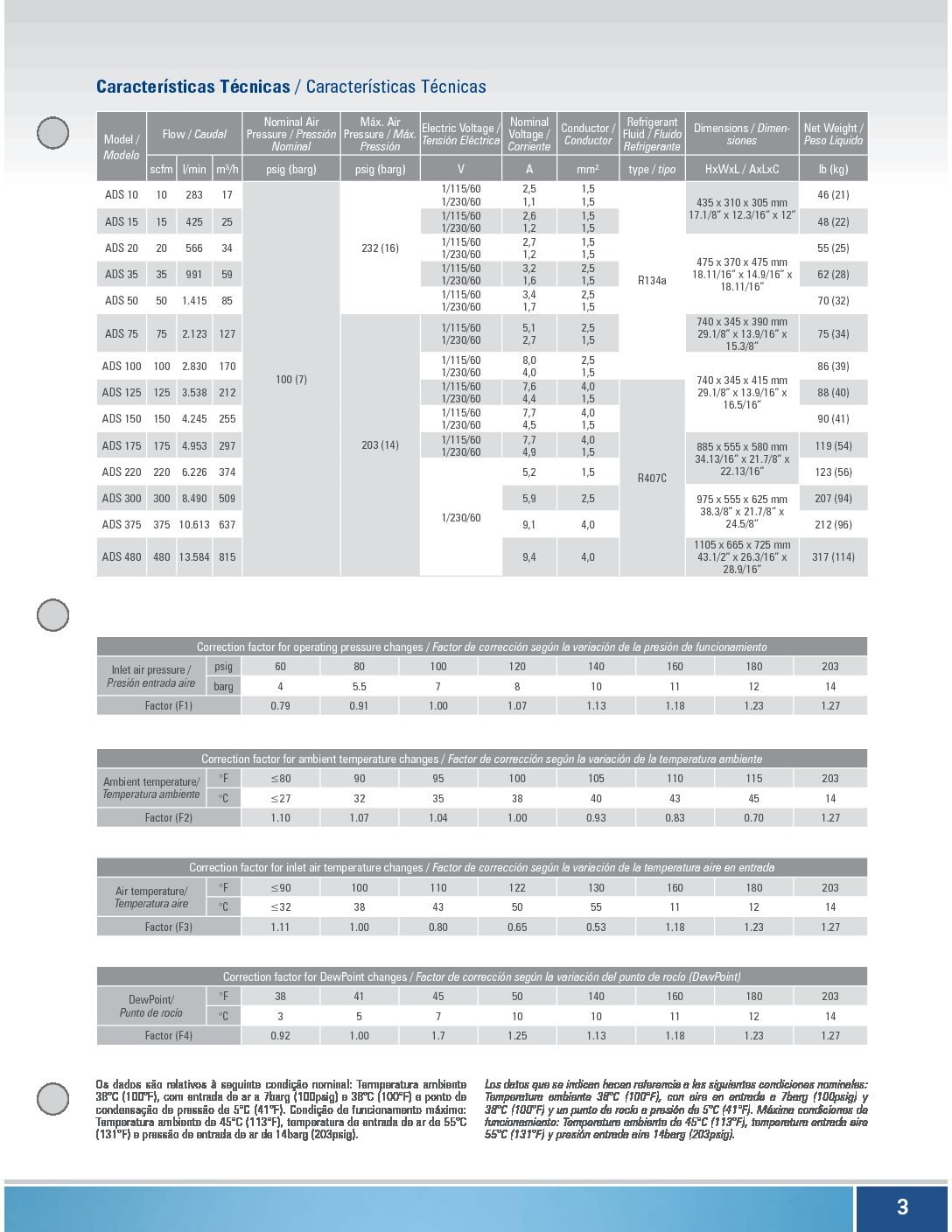

Catalogue link:
https://schulzproducts.com/wp-content/uploads/2018/05/DRYER-SCHULZ.pdf
