Description
Key Benefits
- Delivers up to 13 CFM at 125 PSI for reliable industrial performance
- Durable cast iron construction resists heat and extends service life
- Efficient belt-driven design reduces mechanical stress and ensures smooth operation
- Flexible performance configurations with RPM options from 760 to 1250
- Oil-lubricated system with easy sight glass monitoring on pump front
Specifications
- CFM (use this exact value): 13 CFM
- Max PSI: 140 PSI
- HP: 3 HP
- Pump Type: Single Stage, Belt Driven
- Part Number: 932.3335-0
- Model: MSL 15 MAX
- Displacement: 2 cylinders with 2″ pistons
- Free Air Delivery: 10.0 CFM @ 40 PSI, 8.5 CFM @ 90 PSI at 1250 RPM
- Alternate Configuration: 6.7 CFM @ 40 PSI, 5.5 CFM @ 90 PSI at 760 RPM
- Oil Capacity: 0.5 qt
- Connections: See datasheet
- Weight: 42.8 lbs
- Dimensions: 7″ width x 11.25″ depth x 12″ height
- Flywheel: 10″ diameter with A section belt
Applications
- Industrial workshops and manufacturing facilities
- Automotive service centers and maintenance operations
- Medium to heavy-duty compressed air systems
- Replacement compressor pump for existing systems
Warranty
- 1 Year Warranty on Pump
Downloads

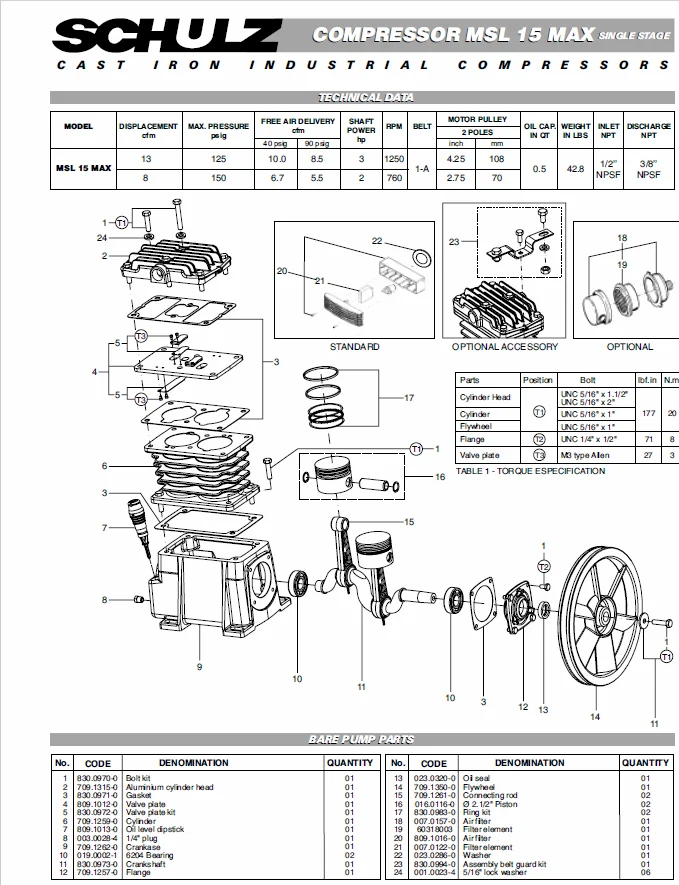

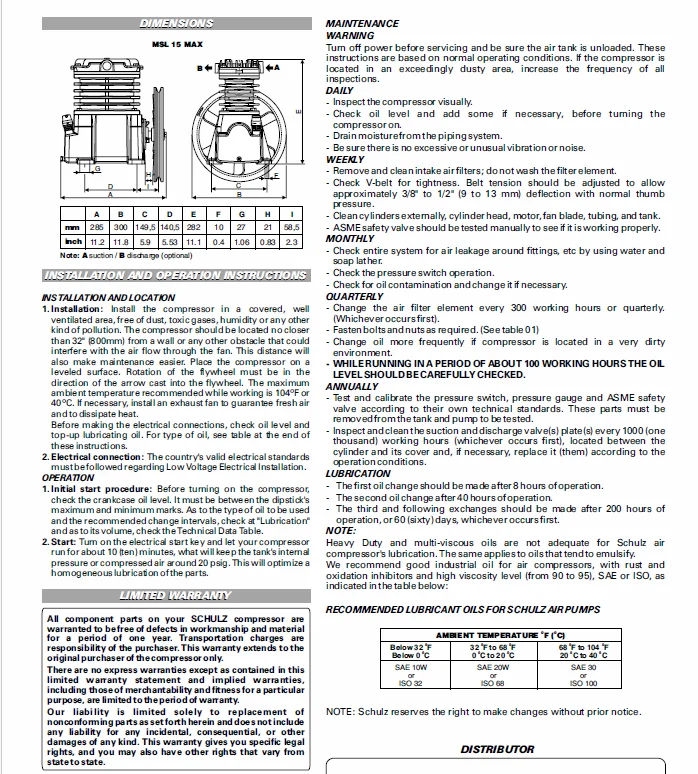

- Product Datasheet: MSL-15-MAX.pdf
