Schulz v-series 15-hp 120-gallon vertical- 230/460 volts 3 phase two-stage 60 cfm 15120vw60x-3

$6,988.65

Do you have any doubts?

Durable, High-Performance Power for Every Job

Get the power you need with the Schulz Air Compressor, now available at schulzproducts.com. Engineered for maximum durability and performance, this compressor is ideal for a variety of applications, from industrial tasks to workshop projects. With advanced design and precision engineering, the Schulz Air Compressor provides reliable air power, reducing downtime and enhancing productivity. Built to handle demanding environments, it offers efficiency and strength in a compact, user-friendly package. Discover uncompromised quality and performance at schulzproducts.com—your destination for dependable air power solutions!

Details

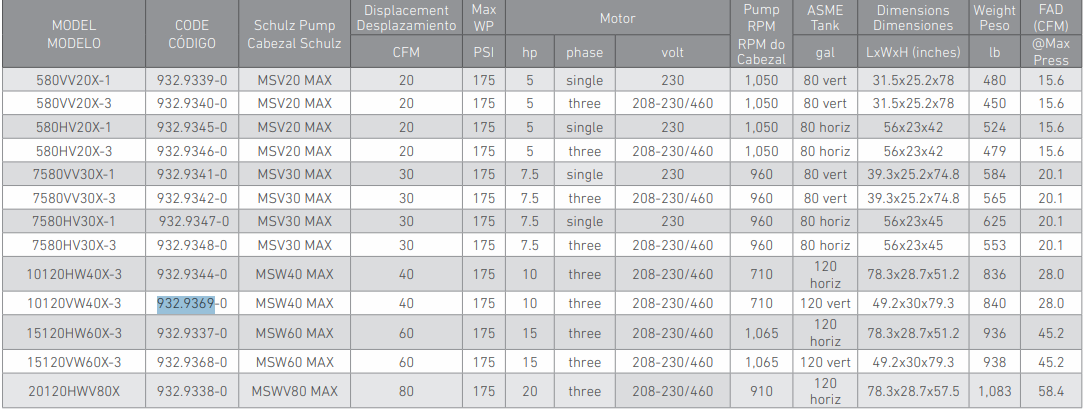

PART # 932.9368-0
15120VW60X-3
120 GALLON TANK VERTICAL 3PHASE.
208-230 Volts Three phase WEG motor
WEG T.E.F.C. Electric Motor
15 HP motor reliably handles commercial duty demands
V-Series Cast Iron Pump
Runs cooler, lasts longer due to the space between each cylinder
Deeper cylinder fins for additional heat dissipation
Oversized Main Bearings
Sturdy & reliable
Swedish Steel Valves
Quality components contribute to pump efficiency
CNC Machined Components
Accurate fit produces top-notch performance
Notched Belts Standard
Enclosed belt guard protects the belt & operators
Powder Coated Components
Resist rust & corrosion
1 Year Unit With 2 Year Pump Warranty
Protects your investment

*Always consult your electrician for proper installation and proper wiring.

Product Category

Air Compressor – Stationary

MOTOR

Voltage	230/460 Volt AC
Phase	Three Phase
Magnetic Starter	Yes
Amp Draw	Consult Certified Electrician
Recommended Breaker	Consult Certified Electrician

ENGINE

PUMP

CFM	60
CFM Rated @	175 PSI
Pump Material	Solid Cast Iron
Max PSI	175 PSI
Oil Sight Glass	Yes
Pump Type	Two-Stage
After Cooler	No
Pump Drive	Belt Drive
Oil Type	Oil Lubricated
Oil System	Splash Lubricated
Pump Low Oil Shut-off	No

TANK

Tank Size	120 Gallons
Tank Outlet	1 Inch
Electronic Drain Valve	No
Tank Orientation	vertical

ACCESSORIES

Pressure Gauge	Yes
Air Dryer	No

OVERVIEW

Weight	836 Pounds
Certification	ASME
Consumer Warranty	1 Year
Commercial Warranty	1 Year
Product Length	78.3 Inches
Product Width	28 Inches
Product Height	51.2 Inches
Power Type	Electric
