Schulz refrigerated air compressor dryer – 125cfm- ads125-up

Categories Air Dryer, Schulz Tag 1 YEAR WARRANTY BUMPER TO BUMPER

$2,145.00

Do you have any doubts?

Powerful, Reliable, and Built for Optimal Performance

The Schulz Air Dryer, available at schulzproducts.com, is engineered to deliver high-quality compressed air, ensuring your systems operate efficiently and with reduced maintenance needs. This air dryer effectively reduces moisture content to prevent corrosion, extend equipment lifespan, and lower operating costs. With its durable construction and energy efficiency, it’s designed for demanding industrial environments, delivering consistently dry air to protect your valuable machinery. Choose Schulz for a solution that maximizes productivity and keeps your air systems running smoothly. Find yours today at schulzproducts.com!

Details

Schulz ADS 125 Non-Cycling Refrigerated Air Dryer (125 -150CFM 115V 1-Phase)

1 YEAR WARRANTY.

Excellent Performance

Even where ambient & inlet temperatures are elevated
Nominal air pressure of 100 PSI; 203 PSI maximum

Energy Efficient Sizing

Matches the compressor’s displacement, saving energy

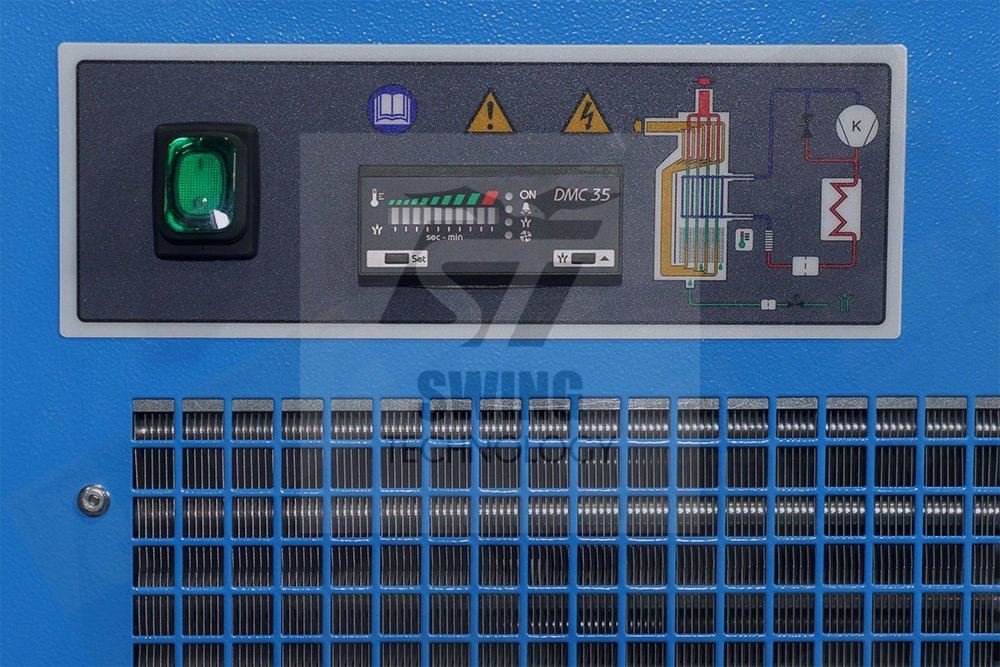

Electronic Controller

Digitally shows temperature & dew point
Controls the drain valve through a timer
Controls the condenser fan through a probe

High-Efficiency Compressor

Circulates the refrigerant through the system

Totally New Design

Delivers high dependability & low power consumption
Quick disconnect automatic drain valve doesn’t need special tools
Requires a 115V, single phase circuit

Environmentally Friendly Refrigerant

R407c is effective & easier on the environment

Technical Features
Model	ADS 125
Flow (CFM)	125
Rated Pressure (PSI)	175
Maximum Pressure (PSI)	203
Connection (in)	1-1/4″ NPT-F
Voltage (V)	115
Refrigerant Fluid	R407C
Frequency (Hz)	60
Phase	Single
Nominal Voltage (A)	7.6
Dimensions (HxWxL in)	30 x 14 x 17
